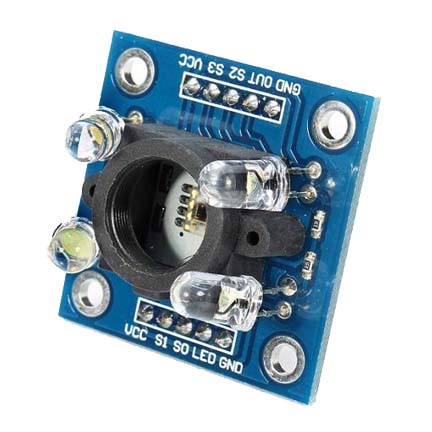

TCS3200 RGB Colour Sensor Module for Arduino, ESP32, Raspberry Pi & Robotics
The TCS3200 Colour Sensor Module is a high-precision RGB color detection sensor capable of identifying red, green, blue, and various mixed colors. It features the TCS3200 color light-to-frequency converter IC with integrated photodiodes and color filters, making it ideal for Arduino, ESP32, Raspberry Pi, robotics, automation, color sorting, and educational electronics projects.
Description
The TCS3200 Colour Sensor Module is a reliable and easy-to-use RGB color recognition module designed for embedded systems and automation projects. It uses the TCS3200 color sensor IC, which contains an 8×8 array of photodiodes with red, green, blue, and clear filters. The sensor converts light intensity into a digital square-wave frequency output that can be easily read by microcontrollers.
The onboard white LEDs provide consistent illumination for accurate color detection under different lighting conditions. Frequency scaling options (2%, 20%, 100%) help optimize performance for various applications.
Compatible with Arduino, ESP32, Raspberry Pi, STM32, AVR, PIC, and many other development boards, the TCS3200 is perfect for students, hobbyists, and professionals working on robotics, industrial automation, and smart sensing projects.
Features
- Original TCS3200 RGB color sensor IC
- Detects Red, Green, Blue, and mixed colors
- Digital frequency output
- Built-in white LEDs for illumination
- Adjustable output frequency scaling
- Fast response and high accuracy
- Wide operating voltage
- Easy interface with microcontrollers
- Compact PCB design
- Low power consumption
- Stable and reliable performance
- Ideal for DIY electronics and automation
Specifications
| Specification | Value |
|---|---|
| Sensor IC | TCS3200 |
| Sensor Type | RGB Colour Sensor |
| Operating Voltage | 2.7V–5.5V DC |
| Typical Supply Voltage | 5V |
| Operating Current | 15–20 mA |
| Output Type | Digital Frequency Output |
| Frequency Scaling | 2%, 20%, 100% |
| Light Source | 4 White LEDs |
| Detection Method | RGB Photodiode Array |
| Interface | Digital |
| Operating Temperature | -40°C to +85°C |
| Module Size | Approx. 31 × 25 mm |
Pin Configuration
| Pin | Function |
|---|---|
| VCC | Power Supply (2.7V–5.5V) |
| GND | Ground |
| OUT | Frequency Output |
| S0 | Frequency Scaling Selection |
| S1 | Frequency Scaling Selection |
| S2 | Photodiode Filter Selection |
| S3 | Photodiode Filter Selection |
| OE | Output Enable (Active Low) |
Frequency Scaling
| S0 | S1 | Output Frequency |
|---|---|---|
| L | L | Power Down |
| L | H | 2% |
| H | L | 20% |
| H | H | 100% |
Color Filter Selection
| S2 | S3 | Selected Filter |
|---|---|---|
| L | L | Red |
| L | H | Blue |
| H | L | Clear (No Filter) |
| H | H | Green |
Applications
- Arduino Projects
- ESP32 Projects
- Raspberry Pi Projects
- Robotics
- Color Sorting Machines
- Industrial Automation
- Conveyor Belt Systems
- Object Color Detection
- Smart Robots
- STEM Education
- Packaging Automation
- DIY Electronics
- Embedded Systems
- Quality Inspection
Package Includes
- 1 × TCS3200 Colour Sensor Module
